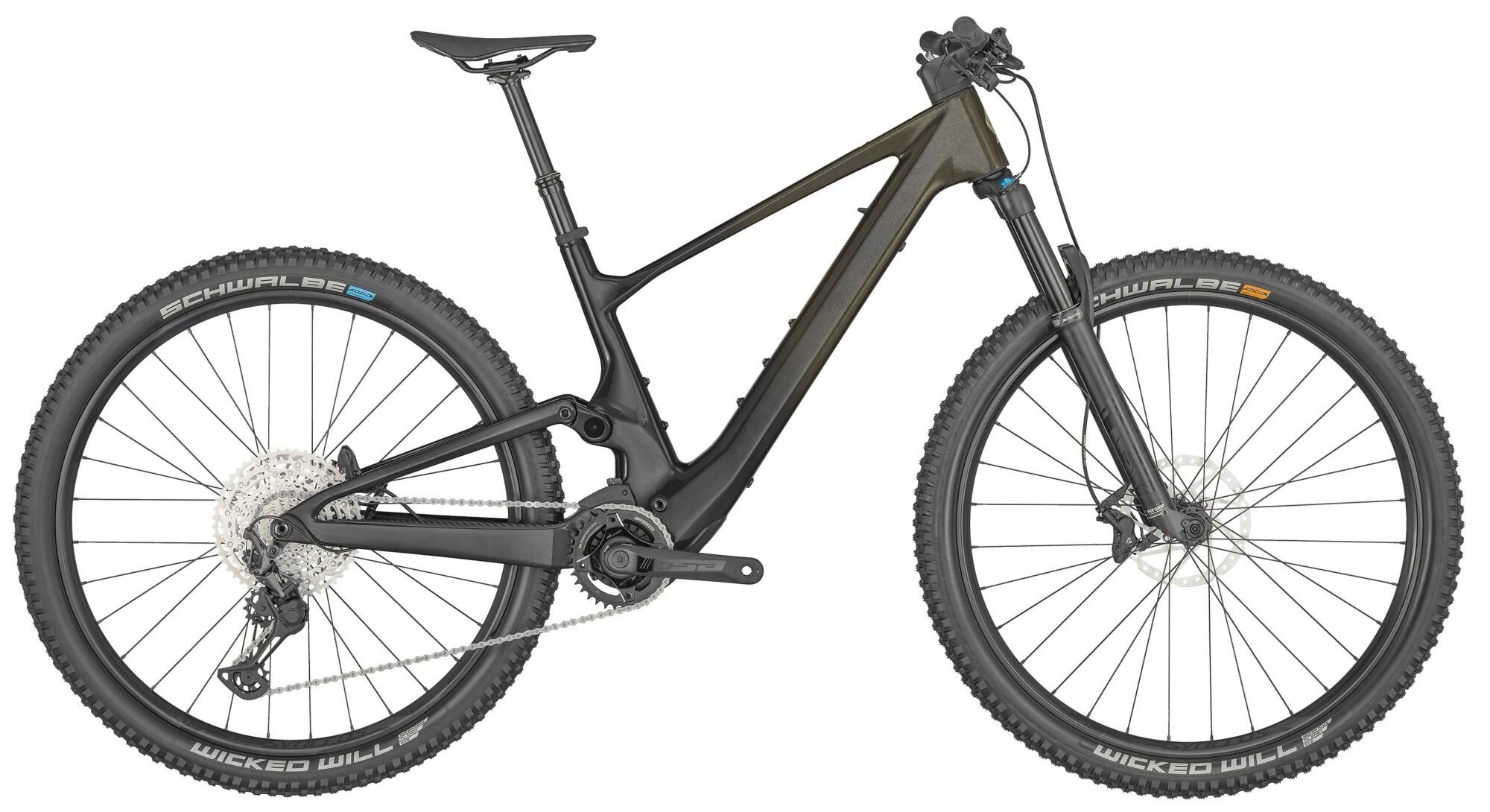

Lumen eRIDE Carbon HMX
Integrated Suspension Technology
Flex Pivot / Adjustable head angle
Syncros Cable Integration System
TQ HPR50 / UDH Interface / 12x148mm with 55mm Chainline

Front: 130mm / Rear: 130mm

FOX 34 Float Rhythm Air Grip
3-Modes / Kabolt 15x110mm axle / tapered steerer
44mm offset / Reb. Adj. / Lockout / 130mm travel

FOX NUDE 5T EVOL Trunnion
SCOTT custom w. travel / geo adj.
3 modes: Lockout-Traction Control-Descend
Custom large Air volume / DPS / Reb. Adj.
Travel 130-90-Lockout / T165X45mm

SCOTT TwinLoc Suspension System
3 modes front and rear / integ. Grip clamp

TQ HPR50 Mid Motor drive 50Nm max Torque / EU: 25kmh / US: 20mph

TQ Internal 360Wh

TQ HPR
Bluetooth / ANT+ / Dedicated Smartphone app

TQ 100-240V-4A

Shimano XT RD-M8100 SGS
Shadow Plus / 12 Speed

Shimano Deore SL-M6100-IR / Rapidfire Plus
Ispec EV clamp

FSA Alloy crankset / 175mm / 34T

e*thirteen / e*spec Slider

Scott custom spider / FSA 12Speed 34T chainring

Shimano CN-M6100

Shimano CS-M6100 / 10-51 T

Shimano Deore M6120 4 Piston Disc

Front: SM-RT64 CL 180mm / Rear: RT-EM600 CL 180mm

Syncros Fraser 2.0 DC Alloy 6061 D.B.
mini Rise / back sweep 8° / 760mm
Syncros Performance XC lock-on grips

Syncros DC 2.0
Syncros Cable Integration System
0° rise / 6061 Alloy / 31.8mm / 1 1/8″

Syncros Duncan Dropper Post 2.0
31.6mm / S & M size 125mm / L size 150mm / XL size 170mm

Syncros Tofino 1.5 Regular, Titanium rails

Syncros – Acros Angle adjust & Cable Routing HS System
+-0.6° head angle adjustment
ZS56/28.6 – ZS56/40 MTB

Formula CL-811 / 15x110mm

Formula CL-148M / 12x148mm / Micro Spline
Syncros Axle w/Removable Lever
with 6mm Allen, T30 and T25 Tools

Stainless Black 15G / 1.8mm

Syncros X-30SE / 32H / 30mm
Tubeless ready

Schwalbe Wicked Will 29×2.4″ EVO
Super Race / TLE / 67EPI / Addix Speed Soft

Schwalbe Wicked Will 29×2.4″ EVO
Super Race / TLE / 67EPI / Addix Speed Grip

17.6 (Tubeless setup)
